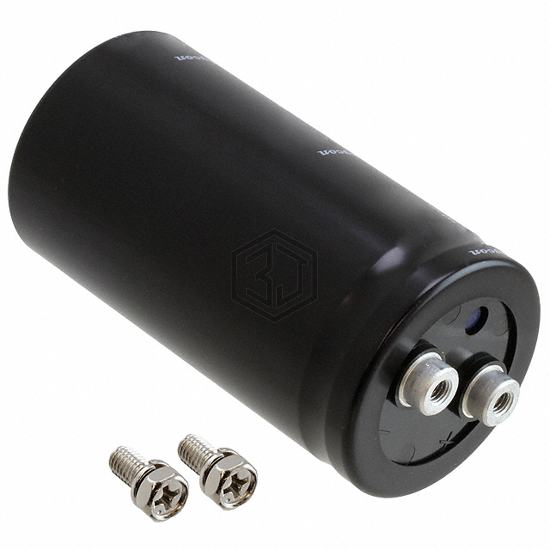

CAP ALUM 47000UF 20% 50V SCREW
50LSQ47000MEFC51X98 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47000UF 20% 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,234
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.396 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.858" (21.80mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.976" (101.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1V473MSE | Nichicon | CAP ALUM 47000UF 20% 35V SCREW | 88% | View |
| E36D500HPN473MC79U | United Chemi-Con | CAP ALUM 47000UF 20% 50V SCREW | 87% | View |
| LNT1H473MSEB | Nichicon | CAP ALUM 47000UF 20% 50V SCREW | 86% | View |
| LNT1J473MSEN | Nichicon | CAP ALUM 47000UF 20% 63V SCREW | 73% | View |
| MAL210178473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 20% 63V SCREW | 71% | View |
| LNT1A473MSEN | Nichicon | CAP ALUM 47000UF 20% 10V SCREW | 71% | View |
