Vishay Beyschlag/Draloric/BC Components

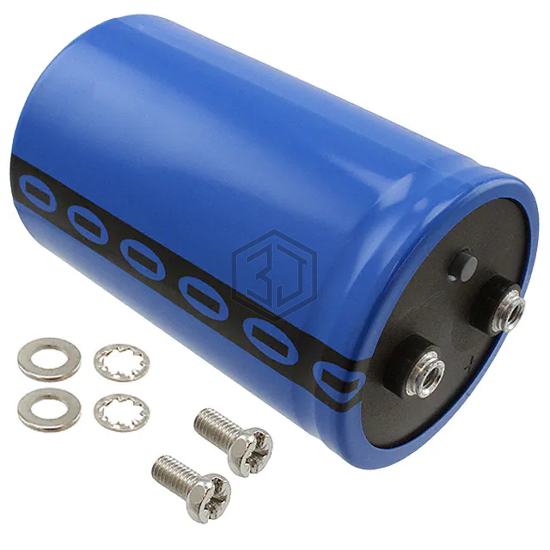

CAP ALUM 150000UF 20% 25V SCREW
MAL210156154E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 150000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,882
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 8mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.6 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 7 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.559" Dia (65.00mm) |
| Height - Seated (Max) | 4.358" (110.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1V154MSE | Nichicon | CAP ALUM 150000UF 20% 35V SCREW | 81% | View |
| LNR1V154MSE | Nichicon | CAP ALUM 150000UF 20% 35V SCREW | 80% | View |
| B41458B7150M003 | EPCOS - TDK Electronics | CAP ALUM 150000UF 20% 40V SCREW | 77% | View |
| LNT1H154MSEB | Nichicon | CAP ALUM 150000UF 20% 50V SCREW | 68% | View |
| LNT1C154MSEN | Nichicon | CAP ALUM 150000UF 20% 16V SCREW | 66% | View |
| LNR2A154MSEB | Nichicon | CAP ALUM 150000UF 20% 100V SCREW | 58% | View |
