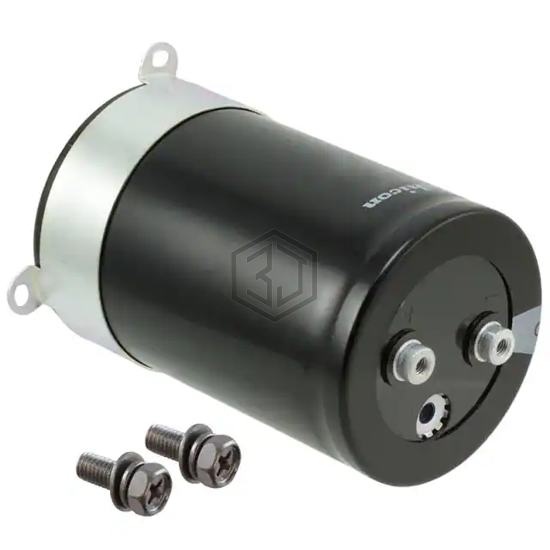

CAP ALUM 150000UF 20% 35V SCREW
LNT1V154MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150000UF 20% 35V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,162
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 17.365 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.843" (123.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1V154MSEB | Nichicon | CAP ALUM 150000UF 20% 35V SCREW | 94% | View |
| LNT1E154MSEN | Nichicon | CAP ALUM 150000UF 20% 25V SCREW | 83% | View |
| LNT1H154MSEB | Nichicon | CAP ALUM 150000UF 20% 50V SCREW | 71% | View |
| LNT1C154MSEN | Nichicon | CAP ALUM 150000UF 20% 16V SCREW | 70% | View |
| LNT1A154MSEB | Nichicon | CAP ALUM 150000UF 20% 10V SCREW | 69% | View |
| LNT1K154MSEB | Nichicon | CAP ALUM 150000UF 20% 80V SCREW | 55% | View |
Submit your RFQ for LNT1V154MSE and get a quote within 24 hours.
