Vishay Beyschlag/Draloric/BC Components
CAP ALUM 560UF 20% 500V SNAP

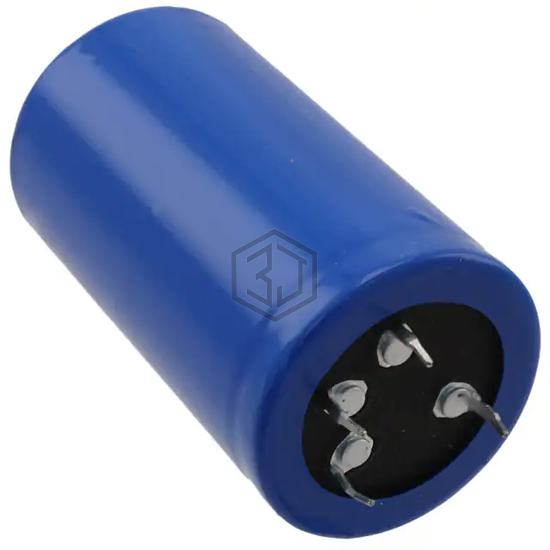

MAL209629561E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 560UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 9,744
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 336mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.55 A @ 10 kHz |
| Impedance | 299 mOhms |
| Lead Spacing | 0.886" (22.50mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.362" (60.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43501B3567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 385V SNAP | 77% | View |
| ALC80D561EF450 | KEMET | CAP ALUM 560UF 20% 450V SNAP | 75% | View |
| MLP561M300EB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 300V FLATPACK | 68% | View |
| B43305B2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 66% | View |
| B43504E2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 65% | View |
| B43601G2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 60% | View |
