Cornell Dubilier Electronics (CDE)

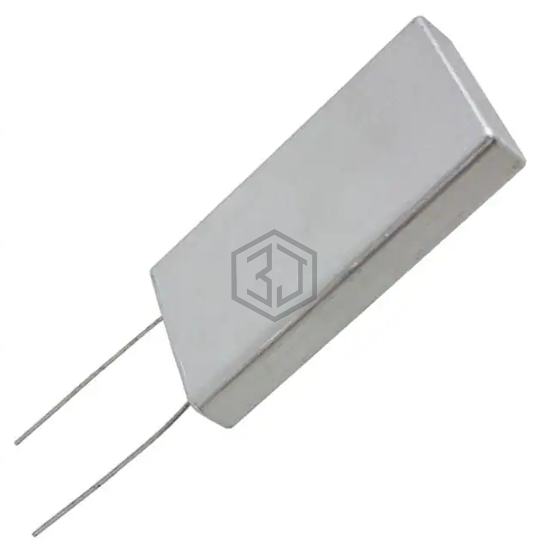

CAP ALUM 560UF 20% 300V FLATPACK
MLP561M300EB0C is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 560UF 20% 300V FLATPACK. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 300 V, package / case FlatPack.
In Stock: 3,806
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 300 V |
| ESR (Equivalent Series Resistance) | 240mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 4 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 3.000" L x 1.750" W (76.20mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305B5567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 77% | View |
| ALC80D561EF450 | KEMET | CAP ALUM 560UF 20% 450V SNAP | 71% | View |
| MAL209629561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 500V SNAP | 68% | View |
| 380LX561M160H032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 160V SNAP | 67% | View |
| B43305B2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 67% | View |
| LGU2P561MELZ | Nichicon | CAP ALUM 560UF 20% 220V SNAP | 65% | View |
Submit your RFQ for MLP561M300EB0C and get a quote within 24 hours.
