Vishay Beyschlag/Draloric/BC Components
CAP ALUM 6800UF 20% 35V SNAP

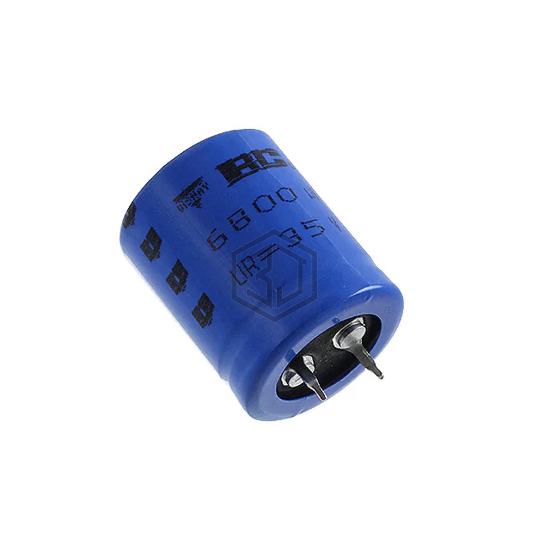

MAL209020682E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 6800UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 1,330
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 70mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 50 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
MAL209020682E3 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LP682M050E7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 50V SNAP | 84% | View |
| MAL214256682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 25V RADIAL | 78% | View |
| LGU1K682MELC | Nichicon | CAP ALUM 6800UF 20% 80V SNAP | 61% | View |
| EKZN6R3ELL682MK30S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 59% | View |
| 6.3YXS6800MEFC12.5X35 | Rubycon | CAP ALUM 6800UF 20% 6.3V RADIAL | 53% | View |
| MAL225054682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 53% | View |
