Vishay Beyschlag/Draloric/BC Components

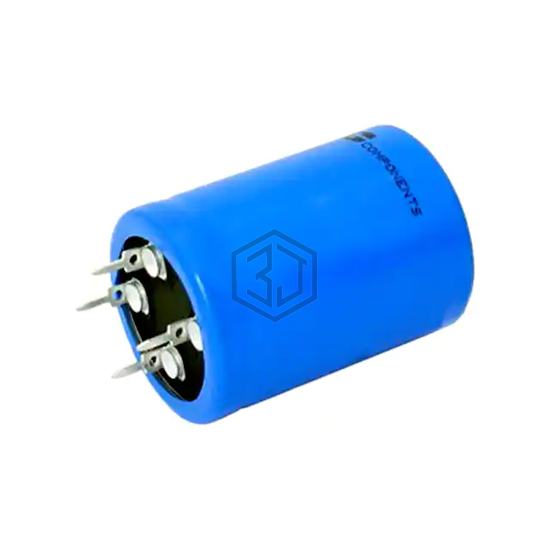

CAP ALUM 150UF 385V RADIAL
MAL205258151E3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 150UF 385V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 385 V, package / case Radial, Can - 4 Lead.
In Stock: 1,344
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 385 V |
| ESR (Equivalent Series Resistance) | 850mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.13 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 635 mOhms |
| Lead Spacing | 0.689" (17.50mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - 4 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400HXW150MEFR14.5X45 | Rubycon | CAP ALUM 150UF 20% 400V RADIAL | 97% | View |
| UCY2V151MHD | Nichicon | CAP ALUM 150UF 20% 350V RADIAL | 95% | View |
| UCY2G151MHD | Nichicon | CAP ALUM 150UF 20% 400V RADIAL | 95% | View |
| MAL219356151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 400V SNAP | 86% | View |
| B43540A5157M62 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 83% | View |
| B43508A5157M62 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 78% | View |
Submit your RFQ for MAL205258151E3 and get a quote within 24 hours.
