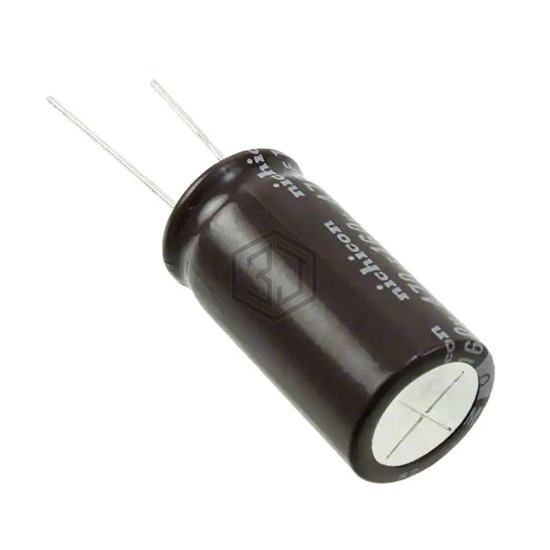

CAP ALUM 150UF 20% 350V RADIAL
UCY2V151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 7,805
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.16 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2G151MHD | Nichicon | CAP ALUM 150UF 20% 400V RADIAL | 94% | View |
| 400HXW150MEFR14.5X45 | Rubycon | CAP ALUM 150UF 20% 400V RADIAL | 89% | View |
| MAL219356151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 400V SNAP | 89% | View |
| B43508A5157M62 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 450V SNAP | 83% | View |
| 420QXW150MEFR18X35 | Rubycon | CAP ALUM 150UF 20% 420V RADIAL | 80% | View |
| UCS2D151MHD | Nichicon | CAP ALUM 150UF 20% 200V RADIAL | 77% | View |
Submit your RFQ for UCY2V151MHD and get a quote within 24 hours.
