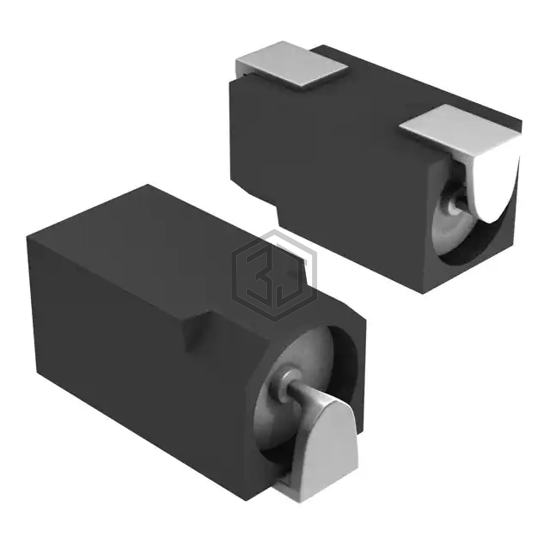

Vishay Beyschlag/Draloric/BC Components
CAP ALUM 1UF 20% 63V SMD
2222 085 68108 is a Aluminum Electrolytic Capacitors manufactured by Vishay Beyschlag/Draloric/BC Components. CAP ALUM 1UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Nonstandard SMD.
In Stock: 4,571
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 190Ohm |
| Lifetime @ Temp. | 1500 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 15 mA @ 10 kHz |
| Impedance | 55 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.346" L x 0.146" W (8.80mm x 3.70mm) |
| Height - Seated (Max) | 0.154" (3.90mm) |
| Surface Mount Land Size | 0.346" L x 0.146" W (8.80mm x 3.70mm) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
2222 085 68108 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVA630ADA1R0MD55G | United Chemi-Con | CAP ALUM 1UF 20% 63V SMD | 99% | View |
| EMVA630ARA1R0MD55G | Chemi-Con | CAP ALUM 1UF 20% 63V SMD | 99% | View |
| EEE-HC1H1R0R | Panasonic Electronic Components | CAP ALUM 1UF 20% 50V SMD | 86% | View |
| EEE-1HA010NR | Panasonic Electronic Components | CAP ALUM 1UF 20% 50V SMD | 86% | View |
| EDH105M050S9BAA | KEMET | CAP ALUM 1UF 20% 50V SMD | 85% | View |
| UZG1H010MCL1GB | Nichicon | CAP ALUM 1UF 20% 50V SMD | 70% | View |
