CAP ALUM 1UF 20% 50V SMD

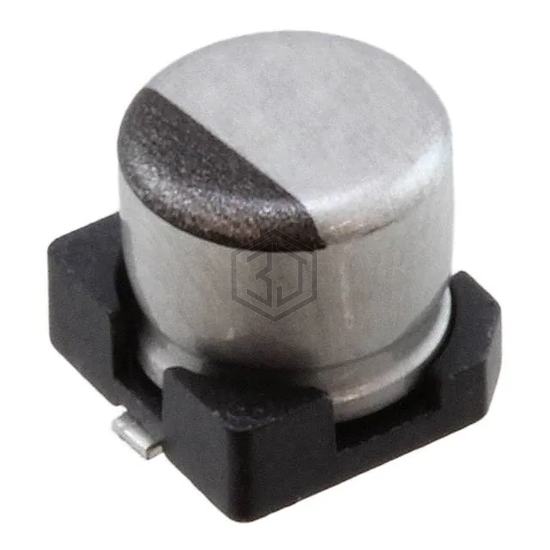

UZG1H010MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,757
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.4 mA @ 120 Hz |
| Ripple Current @ High Frequency | 8.1 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVKBP50VC1R0MD60TP | United Chemi-Con | CAP ALUM 1UF 20% 50V SMD | 99% | View |
| CH050M1R0C5APE50V00R | Suscon | CAP ALUM 1UF 20% 50V SMD | 88% | View |
| UUA1H010MCL1GS | Nichicon | CAP ALUM 1UF 20% 50V SMD | 81% | View |
| EMVE630ADA1R0MD55G | United Chemi-Con | CAP ALUM 1UF 20% 63V SMD | 78% | View |
| EDH105M050S9BAA | KEMET | CAP ALUM 1UF 20% 50V SMD | 75% | View |
| EEE-HC1H1R0R | Panasonic Electronic Components | CAP ALUM 1UF 20% 50V SMD | 67% | View |
