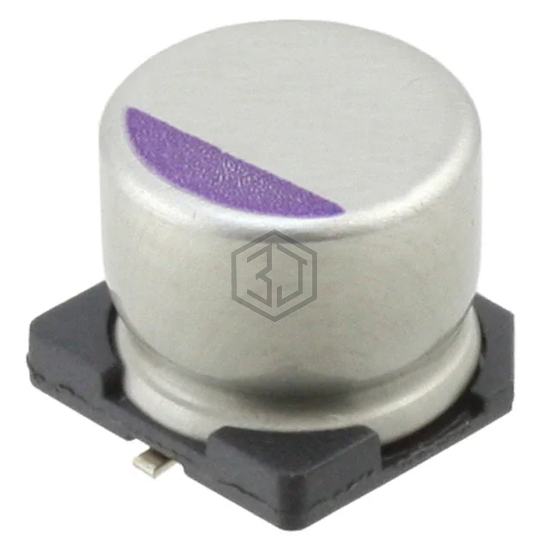

CAP ALUM POLY 8.2UF 20% 35V SMD
94SVPD825X0035E7 is a Aluminum - Polymer Capacitors manufactured by Vishay Sprague. CAP ALUM POLY 8.2UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,182
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 8.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 70mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 400 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35SVPD8R2M | Panasonic Electronic Components | CAP ALUM POLY 8.2UF 20% 35V SMD | 100% | View |
| 94SVPD106X0025C6 | Vishay Sprague | CAP ALUM POLY 10UF 20% 25V SMD | 74% | View |
| 25SVPD10M | Panasonic Electronic Components | CAP ALUM POLY 10UF 20% 25V SMD | 74% | View |
| PCX1V100MCL1GS | Nichicon | CAP ALUM POLY 10UF 20% 35V SMD | 67% | View |
| 50SVPK10M | Panasonic Electronic Components | CAP ALUM POLY 10UF 20% 50V SMD | 66% | View |
| MAL218697001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 10UF 20% 35V SMD | 61% | View |
