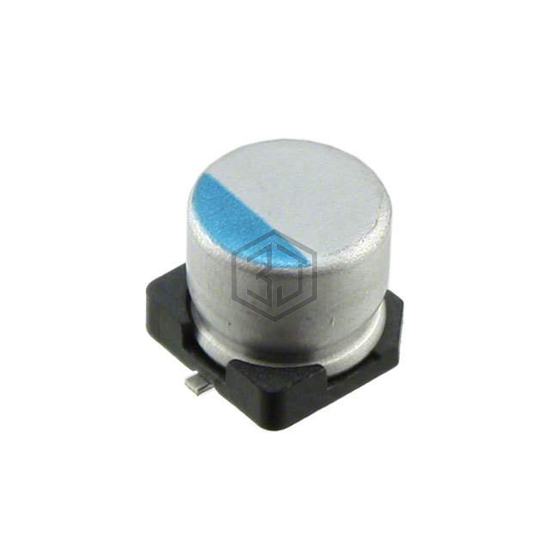

CAP ALUM POLY 10UF 20% 35V SMD
PCX1V100MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,321
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 85mOhm |
| Lifetime @ Temp. | 1500 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218697001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 10UF 20% 35V SMD | 93% | View |
| 50SVF10M | Panasonic Electronic Components | CAP ALUM POLY 10UF 20% 50V SMD | 85% | View |
| PCX1H100MCS1GS | Nichicon | CAP ALUM POLY 10UF 20% 50V SMD | 78% | View |
| PCX1H100MCL1GS | Nichicon | CAP ALUM POLY 10UF 20% 50V SMD | 78% | View |
| 50SVPK10M | Panasonic Electronic Components | CAP ALUM POLY 10UF 20% 50V SMD | 73% | View |
| 25SVPD10M | Panasonic Electronic Components | CAP ALUM POLY 10UF 20% 25V SMD | 69% | View |
