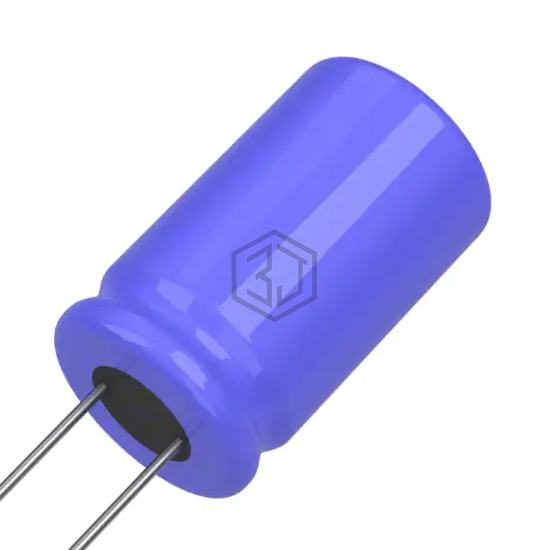

CAP ALUM 470UF 20% 40V RADIAL
678D477M040EK3DE3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 470UF 20% 40V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can.
In Stock: 6,088
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 133mOhm @ 20Hz |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 896 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.28 A @ 100 kHz |
| Impedance | 50 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.098" (27.90mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1V471MHD1TO | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 91% | View |
| B41888C6477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 50V RADIAL | 80% | View |
| 757D477M025CG5D | Vishay Sprague | CAP ALUM 470UF 20% 25V RADIAL | 80% | View |
| RXW471M1EBK-1016S | SURGE | CAP ALUM 470UF 20% 25V RADIAL | 74% | View |
| 601D477G025GE2 | Vishay Sprague | CAP ALUM 470UF 25V AXIAL | 70% | View |
| B41866C7477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 35V RADIAL | 70% | View |
Submit your RFQ for 678D477M040EK3DE3 and get a quote within 24 hours.
