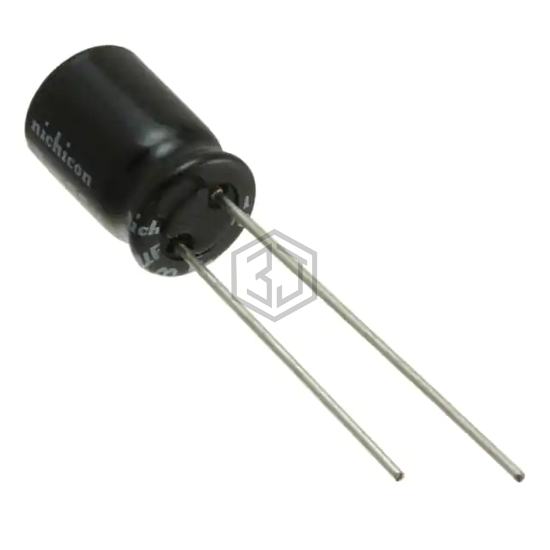

CAP ALUM 470UF 20% 35V RADIAL
UEP1V471MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,704
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UEP1V471MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41866C7477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 35V RADIAL | 100% | View |
| 678D477M040EK3DE3 | Vishay Sprague | CAP ALUM 470UF 20% 40V RADIAL | 91% | View |
| RXW471M1EBK-1016S | SURGE | CAP ALUM 470UF 20% 25V RADIAL | 78% | View |
| MAL211816471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V AXIAL | 78% | View |
| 757D477M025CG5D | Vishay Sprague | CAP ALUM 470UF 20% 25V RADIAL | 78% | View |
| B41888C6477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 50V RADIAL | 77% | View |
Submit your RFQ for UEP1V471MHD1TO and get a quote within 24 hours.
