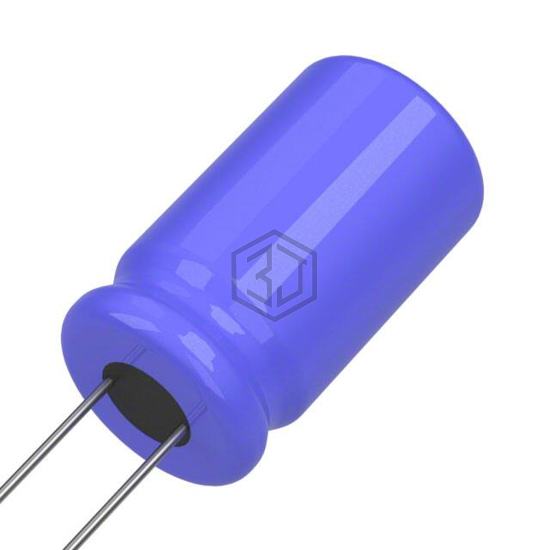

CAP ALUM 470UF 20% 20V RADIAL
678D477M020DG3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 470UF 20% 20V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 5,177
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 250mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 315 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 75 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY1C471MPD | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 92% | View |
| ECA-1CHG471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V RADIAL | 92% | View |
| 678D477M016CG4D | Vishay Sprague | CAP ALUM 470UF 20% 16V RADIAL | 73% | View |
| EEU-FC0J471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V RADIAL | 66% | View |
| MAL214661471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 50V RADIAL | 56% | View |
| MAL211916471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 25V AXIAL | 56% | View |
