Panasonic Electronic Components
CAP ALUM 470UF 20% 16V RADIAL

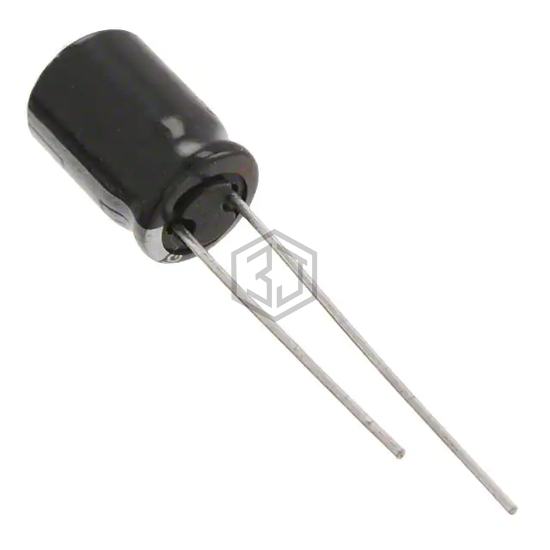

ECA-1CHG471 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,243
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 465 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY1C471MPD | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 99% | View |
| 678D477M020DG3D | Vishay Sprague | CAP ALUM 470UF 20% 20V RADIAL | 92% | View |
| ELXY160ELL471MH20D | United Chemi-Con | CAP ALUM 470UF 20% 16V RADIAL | 85% | View |
| ELXV100ETC471MH15S | United Chemi-Con | CAP ALUM 470UF 20% 10V RADIAL | 83% | View |
| EEU-FC0J471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V RADIAL | 68% | View |
| MAL211916471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 25V AXIAL | 59% | View |
Submit your RFQ for ECA-1CHG471 and get a quote within 24 hours.
