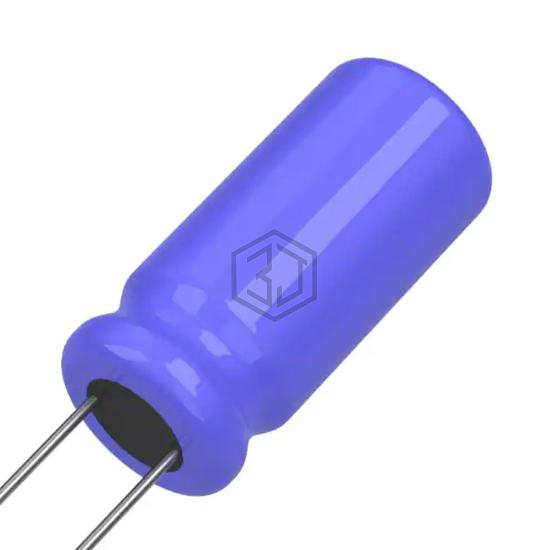

CAP ALUM 470UF 20% 10V RADIAL
678D477M010CG3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 470UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,118
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 235mOhm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 441 mA @ 120 Hz |
| Ripple Current @ High Frequency | 630 mA @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1A471MPL1TD | Nichicon | CAP ALUM 470UF 20% 10V RADIAL | 70% | View |
| 35NXA470MEFC12.5X25 | Rubycon | CAP ALUM 470UF 20% 35V RADIAL | 68% | View |
| UBX1H471MHL1TO | Nichicon | CAP ALUM 470UF 20% 50V RADIAL | 67% | View |
| MAL226050471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 64% | View |
| UPA1E471MPD1TD | Nichicon | CAP ALUM 470UF 20% 25V RADIAL | 63% | View |
| URZ1J471MHD1TN | Nichicon | CAP ALUM 470UF 20% 63V RADIAL | 60% | View |
Submit your RFQ for 678D477M010CG3D and get a quote within 24 hours.
