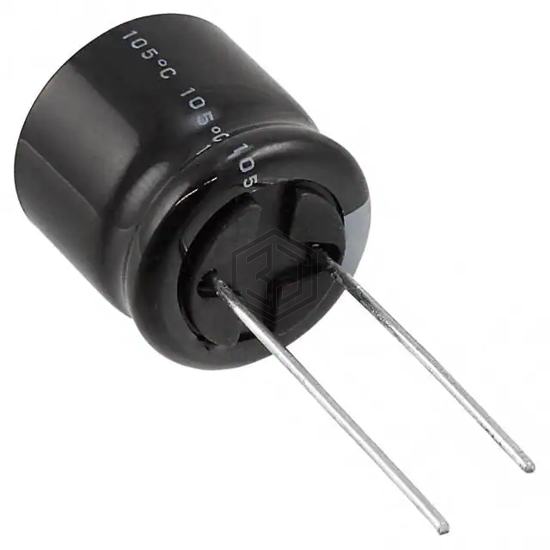

CAP ALUM 470UF 20% 63V RADIAL
URZ1J471MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,212
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 960 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ630ELL471MK20S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 100% | View |
| EKMG630ETE471MK20S | United Chemi-Con | CAP ALUM 470UF 20% 63V RADIAL | 100% | View |
| UBX1H471MHL1TO | Nichicon | CAP ALUM 470UF 20% 50V RADIAL | 86% | View |
| UPA1E471MPD1TD | Nichicon | CAP ALUM 470UF 20% 25V RADIAL | 76% | View |
| MAL226050471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 70% | View |
| 35NXA470MEFC12.5X25 | Rubycon | CAP ALUM 470UF 20% 35V RADIAL | 61% | View |
Submit your RFQ for URZ1J471MHD1TN and get a quote within 24 hours.
