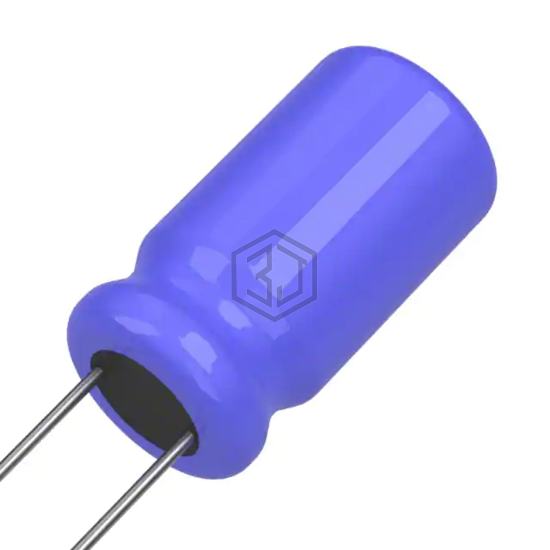

CAP ALUM 47UF 20% 63V RADIAL
678D476M063CD5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 47UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 1,342
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 1Ohm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 259 mA @ 120 Hz |
| Ripple Current @ High Frequency | 370 mA @ 100 kHz |
| Impedance | 180 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.740" (18.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888G8476M008 | EPCOS - TDK Electronics | CAP ALUM 63V POLAR | 91% | View |
| B41888G8476M006 | EPCOS - TDK Electronics | CAP ALUM 63V POLAR | 91% | View |
| UBX1K470MPL1TD | Nichicon | CAP ALUM 47UF 20% 80V RADIAL | 82% | View |
| 63PX47MEFC6.3X11 | Rubycon | CAP ALUM 47UF 20% 63V RADIAL | 72% | View |
| 672D476H025CC5D | Vishay Sprague | CAP ALUM 47UF 25V RADIAL | 56% | View |
| SEK470M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 16V RADIAL | 56% | View |
