Cornell Dubilier Electronics (CDE)

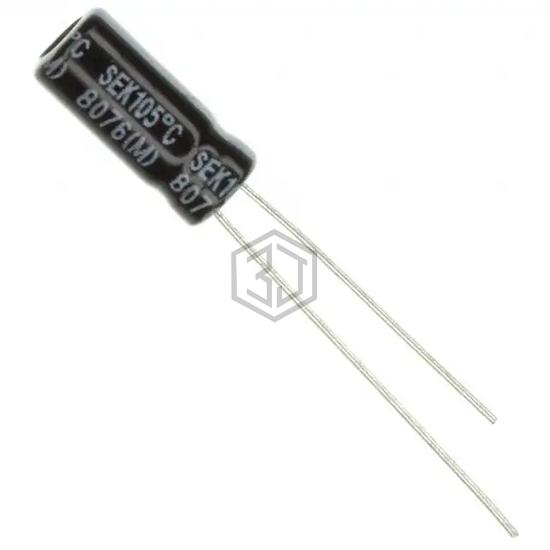

CAP ALUM 47UF 20% 16V RADIAL
SEK470M016ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 47UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 692
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 5.08Ohm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41043A4476M | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 16V RADIAL | 100% | View |
| B41866A4476M008 | EPCOS - TDK Electronics | CAP ALUM 16V POLAR | 100% | View |
| UEP1A470MDD | Nichicon | CAP ALUM 47UF 20% 10V RADIAL | 70% | View |
| UBX1K470MPL1TD | Nichicon | CAP ALUM 47UF 20% 80V RADIAL | 56% | View |
| UPJ1H470MED1TD | Nichicon | CAP ALUM 47UF 20% 50V RADIAL | 56% | View |
| MAL214068479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for SEK470M016ST and get a quote within 24 hours.
