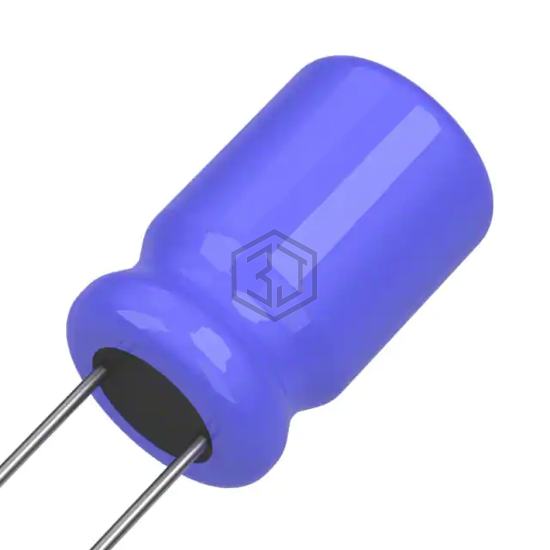

CAP ALUM 47UF 20% 40V RADIAL
678D476M040CC4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 47UF 20% 40V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can.
In Stock: 7,665
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 950mOhm @ 20Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 196 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | 265 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.563" (14.30mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1H470MED1TA | Nichicon | CAP ALUM 47UF 20% 50V RADIAL | 85% | View |
| UBW1H470MPD1TD | Nichicon | CAP ALUM 47UF 20% 50V RADIAL | 79% | View |
| MAL212367479 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 40V AXIAL | 77% | View |
| EKMQ350ETD470ME11D | United Chemi-Con | CAP ALUM 47UF 20% 35V RADIAL | 66% | View |
| 672D476F025CC5D | Vishay Sprague | CAP ALUM 47UF 25V RADIAL | 59% | View |
| USF1E470MDD1TA | Nichicon | CAP ALUM 47UF 20% 25V RADIAL | 59% | View |
