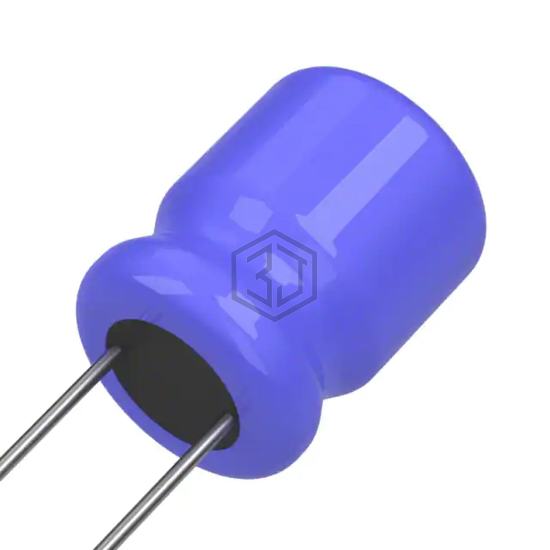

CAP ALUM 47UF 25V RADIAL
672D476F025CC5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 47UF 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,661
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 2.35Ohm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 400 mA @ 100 kHz |
| Impedance | 850 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KMG16VB47RM5X11LL | United Chemi-Con | CAP ALUM 47UF 20% 16V RADIAL | 71% | View |
| 672D476H040CD5CE3 | Vishay Sprague | CAP ALUM 47UF 40V RADIAL | 70% | View |
| UBW1H470MPD1TD | Nichicon | CAP ALUM 47UF 20% 50V RADIAL | 64% | View |
| 678D476M040CC4D | Vishay Sprague | CAP ALUM 47UF 20% 40V RADIAL | 59% | View |
| USF1E470MDD1TA | Nichicon | CAP ALUM 47UF 20% 25V RADIAL | 58% | View |
| SEK470M063ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for 672D476F025CC5D and get a quote within 24 hours.
