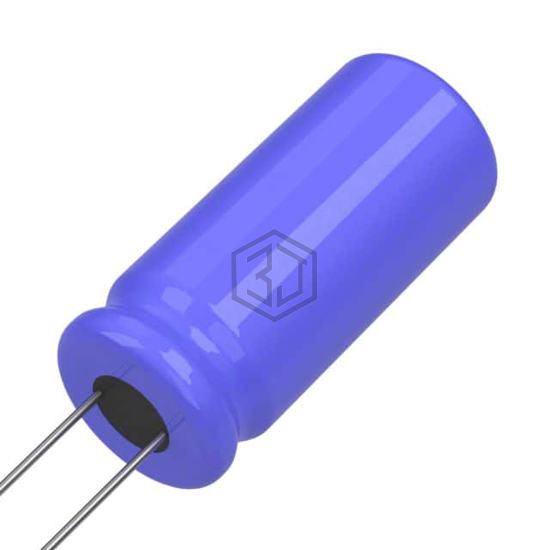

CAP ALUM 330UF 20% 40V RADIAL
678D337M040DM3D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 330UF 20% 40V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can.
In Stock: 8,642
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 651 mA @ 120 Hz |
| Ripple Current @ High Frequency | 930 mA @ 100 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.161" (29.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY500ETE331MK20S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 85% | View |
| B41866C7337M008 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 35V RADIAL | 75% | View |
| UPA1E331MPD1TA | Nichicon | CAP ALUM 330UF 20% 25V RADIAL | 68% | View |
| EKMG350ELL331MJC5S | United Chemi-Con | CAP ALUM 330UF 20% 35V RADIAL | 67% | View |
| ELXY250ETC331MH20D | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 67% | View |
| MAL216066331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 65% | View |
