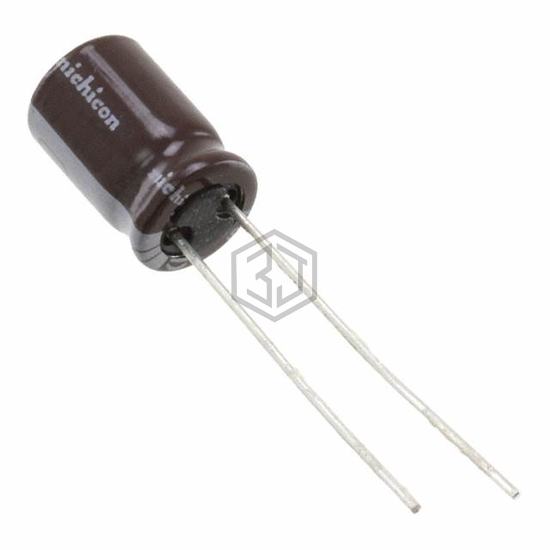

CAP ALUM 330UF 20% 25V RADIAL
UPA1E331MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,684
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 409.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 90 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888C5337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 25V RADIAL | 97% | View |
| ELXY250ETC331MH20D | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 96% | View |
| EV337M025A9MAAKPLP | KEMET | ALUM ELECTRO CAP | 90% | View |
| MAL216066331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 25V RADIAL | 82% | View |
| EKMG350ELL331MJC5S | United Chemi-Con | CAP ALUM 330UF 20% 35V RADIAL | 81% | View |
| EKMQ500ELL331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 71% | View |
Submit your RFQ for UPA1E331MPD1TA and get a quote within 24 hours.
