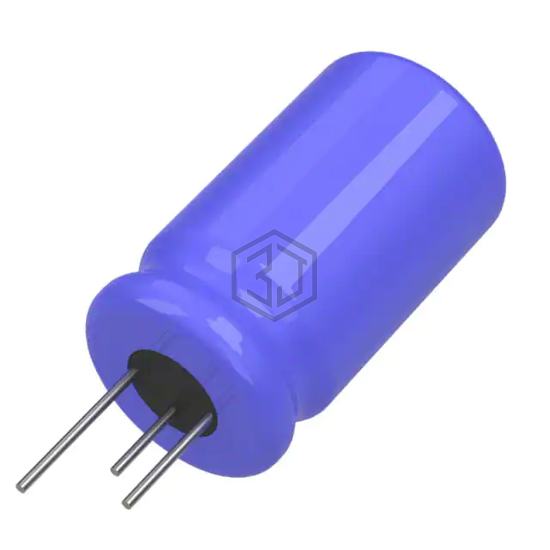

CAP ALUM 1000UF 20% 6.3V RADIAL
678D108M6R3DG5O is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 1000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,856
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 581 mA @ 120 Hz |
| Ripple Current @ High Frequency | 830 mA @ 100 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D108M010DM3J | Vishay Sprague | CAP ALUM 1000UF 20% 10V RADIAL | 79% | View |
| 16PX1000MEFCKG10X12.5 | Rubycon | CAP ALUM 1000UF 20% 16V RADIAL | 75% | View |
| EKRG160ELL102MK13S | United Chemi-Con | CAP ALUM 1000UF 20% 16V RADIAL | 74% | View |
| MAL215035102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 63% | View |
| B41866C5108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 25V RADIAL | 62% | View |
| MAL214051102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 59% | View |
Submit your RFQ for 678D108M6R3DG5O and get a quote within 24 hours.
