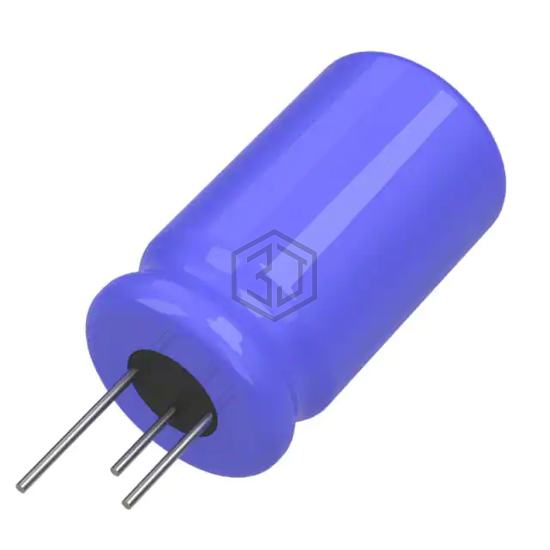

CAP ALUM 100UF 20% 63V RADIAL
678D107M063DG3O is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 100UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,092
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 450mOhm @ 20Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 504 mA @ 120 Hz |
| Ripple Current @ High Frequency | 720 mA @ 100 kHz |
| Impedance | 90 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.906" (23.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1K101MHL | Nichicon | CAP ALUM 100UF 20% 80V RADIAL | 85% | View |
| EEU-FC1J101LB | Panasonic Electronic Components | CAP ALUM 100UF 20% 63V RADIAL | 75% | View |
| ELXV101ETD101MJ30S | United Chemi-Con | CAP ALUM 100UF 20% 100V RADIAL | 67% | View |
| MAL216061101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 65% | View |
| 672D107F050DT5D | Vishay Sprague | CAP ALUM 100UF 50V RADIAL | 63% | View |
| 672D107M025CC3D | Vishay Sprague | CAP ALUM 100UF 25V RADIAL | 56% | View |
Submit your RFQ for 678D107M063DG3O and get a quote within 24 hours.
