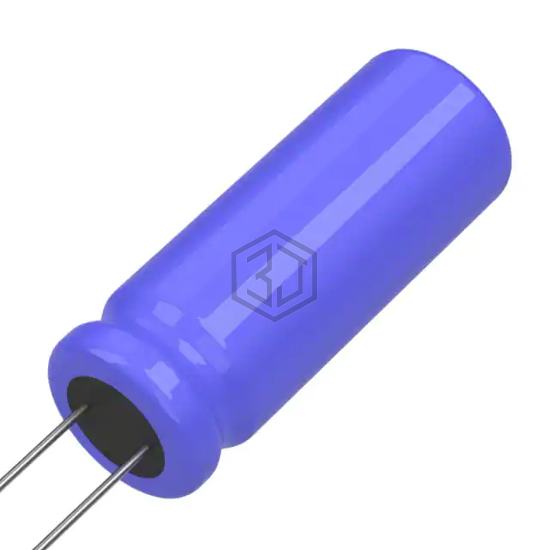

CAP ALUM 100UF 50V RADIAL
672D107F050DT5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 100UF 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,707
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 800mOhm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 805 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.15 A @ 100 kHz |
| Impedance | 220 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.417" (36.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216061101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 96% | View |
| MAL214031101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 69% | View |
| 678D107M063DG3O | Vishay Sprague | CAP ALUM 100UF 20% 63V RADIAL | 63% | View |
| UBX1K101MHL | Nichicon | CAP ALUM 100UF 20% 80V RADIAL | 61% | View |
| MAL211890005E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 200V T/H | 60% | View |
| EEU-FC1J101LB | Panasonic Electronic Components | CAP ALUM 100UF 20% 63V RADIAL | 60% | View |
Submit your RFQ for 672D107F050DT5D and get a quote within 24 hours.
