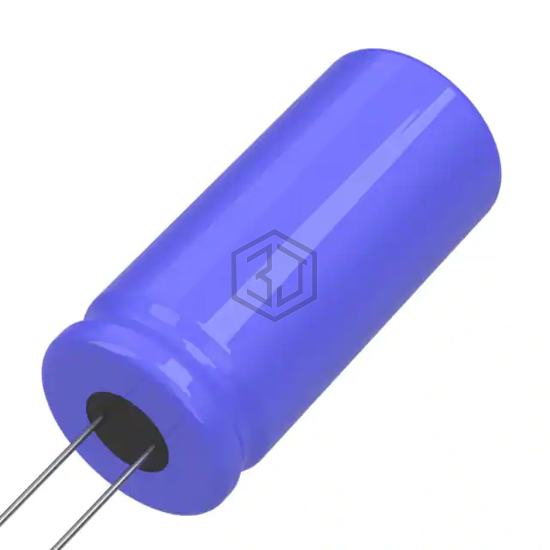

CAP ALUM 47UF 200V RADIAL
672D476F200FV5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 47UF 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 2.3Ohm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 665 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 mA @ 100 kHz |
| Impedance | 165 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.693" (43.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
