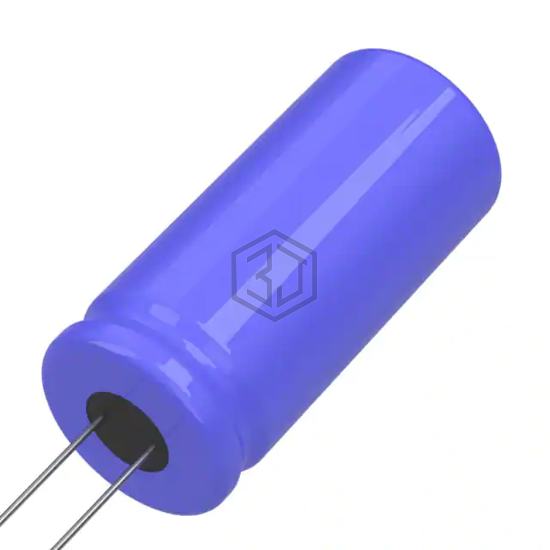

CAP ALUM 47UF 200V RADIAL
672D476F200FV4D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 47UF 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 5,568
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 2.3Ohm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 665 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 mA @ 100 kHz |
| Impedance | 165 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D476H200FV5J | Vishay Sprague | CAP ALUM 47UF 200V RADIAL | 100% | View |
| 672D476F040CD5D | Vishay Sprague | CAP ALUM 47UF 40V RADIAL | 56% | View |
| 672D476H025CC5I | Vishay Sprague | CAP ALUM 47UF 25V RADIAL | 56% | View |
| ELXY350ETC470MFB5D | United Chemi-Con | CAP ALUM 47UF 20% 35V RADIAL | 56% | View |
| 600D476F050DE4 | Vishay Sprague | CAP ALUM 47UF 50V AXIAL | 56% | View |
| 630D476M100DC2A | Vishay Sprague | CAP ALUM 47UF 20% 100V AXIAL | 56% | View |
Submit your RFQ for 672D476F200FV4D and get a quote within 24 hours.
