CAP ALUM 1000UF 15V RADIAL

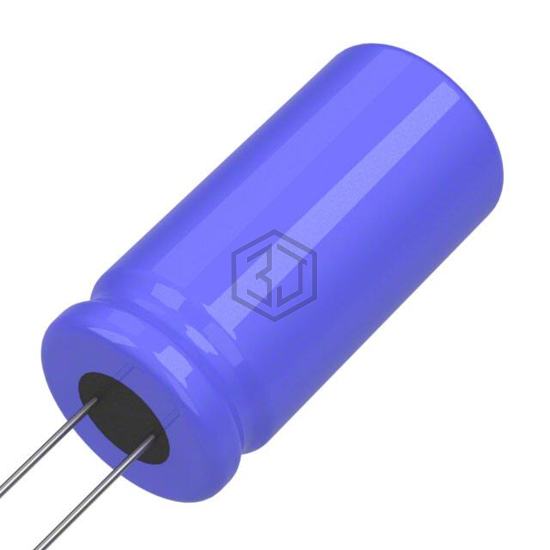

672D108F015ET5D is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 1000UF 15V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 15 V, package / case Radial, Can.
In Stock: 5,426
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 15 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.03 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9 A @ 100 kHz |
| Impedance | 55 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.417" (36.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 108KXM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 16V RADIAL | 73% | View |
| MAL215065102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 70% | View |
| B41858C8108M9 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 63V RADIAL | 66% | View |
| EEU-FC1E102SB | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V RADIAL | 63% | View |
| MAL225090103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 56% | View |
| MAL211948102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 63V AXIAL | 56% | View |
Submit your RFQ for 672D108F015ET5D and get a quote within 24 hours.
