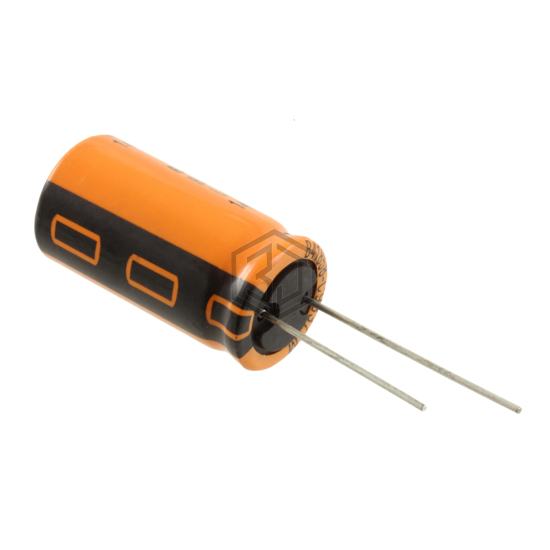

CAP ALUM 1000UF 20% 63V RADIAL
B41858C8108M9 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1000UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 9,907
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 54mOhm @ 10kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.092 A @ 100 kHz |
| Impedance | 49 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
B41858C8108M9 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211948102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 63V AXIAL | 82% | View |
| EEU-FC1E102SB | Panasonic Electronic Components | CAP ALUM 1000UF 20% 25V RADIAL | 69% | View |
| 108KXM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 16V RADIAL | 67% | View |
| MAL215065102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 67% | View |
| 672D108F015ET5D | Vishay Sprague | CAP ALUM 1000UF 15V RADIAL | 66% | View |
| MAL214050102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 63% | View |
Submit your RFQ for B41858C8108M9 and get a quote within 24 hours.
