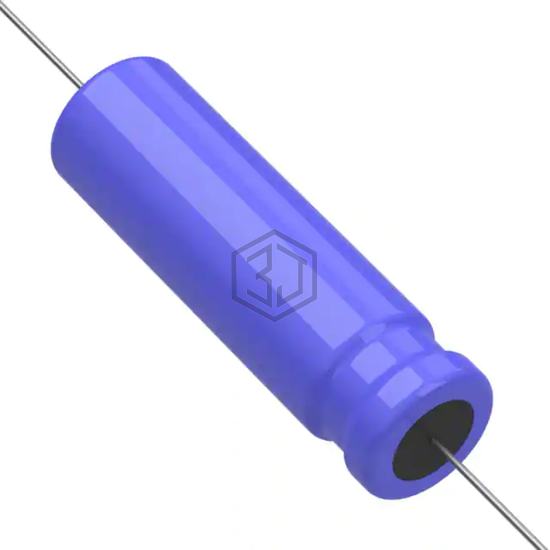

CAP ALUM 56UF 200V AXIAL
601D566F200FL3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 56UF 200V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 200 V, package / case Axial, Can.
In Stock: 9,307
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.625" Dia x 2.125" L (15.88mm x 53.98mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1V560MED1TD | Nichicon | CAP ALUM 56UF 20% 35V RADIAL | 56% | View |
| MAL213658569E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56UF 20% 63V RADIAL | 56% | View |
| UPM1K560MPD1TA | Nichicon | CAP ALUM 56UF 20% 80V RADIAL | 56% | View |
| UBX1J560MPL1TD | Nichicon | CAP ALUM 56UF 20% 63V RADIAL | 56% | View |
| UPV1V560MGD1TD | Nichicon | CAP ALUM 56UF 20% 35V RADIAL | 56% | View |
| B41866C6566M000 | EPCOS - TDK Electronics | CAP ALUM 56UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for 601D566F200FL3 and get a quote within 24 hours.
