CAP ALUM 56UF 20% 35V RADIAL

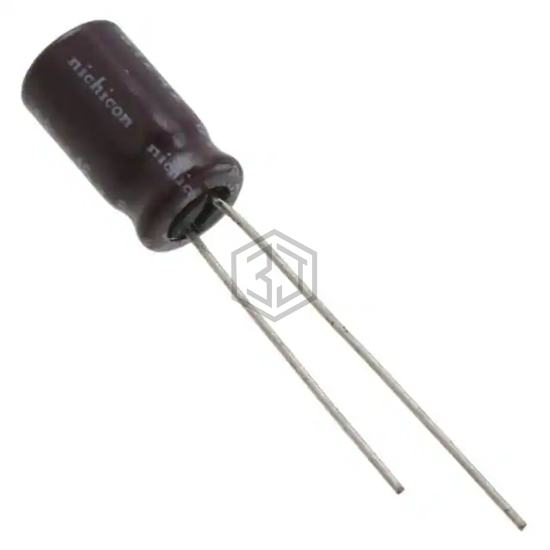

UPJ1V560MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,057
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 295 mA @ 10 kHz |
| Impedance | 450 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1V560MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1V560MGD1TD | Nichicon | CAP ALUM 56UF 20% 35V RADIAL | 99% | View |
| RXK560M1JBK-0811S | Surge | CAP ALUM 63V POLAR | 81% | View |
| B41866C6566M000 | EPCOS - TDK Electronics | CAP ALUM 56UF 20% 50V RADIAL | 77% | View |
| UBX1J560MPL1TD | Nichicon | CAP ALUM 56UF 20% 63V RADIAL | 69% | View |
| MAL213658569E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56UF 20% 63V RADIAL | 66% | View |
| 601D566F200FL3 | Vishay Sprague | CAP ALUM 56UF 200V AXIAL | 56% | View |
Submit your RFQ for UPJ1V560MED1TD and get a quote within 24 hours.
