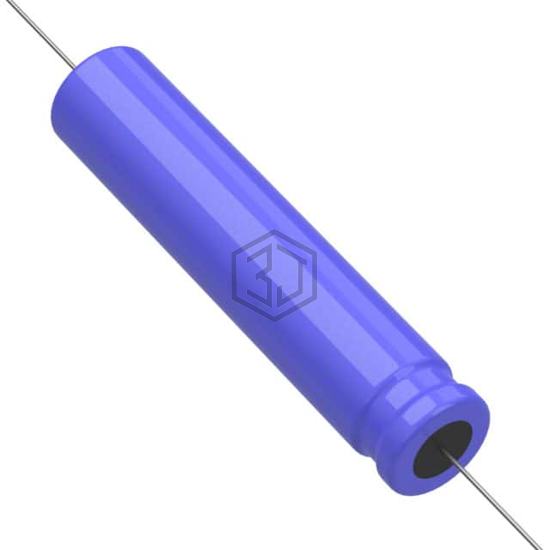

CAP ALUM 390UF 200V AXIAL
601D397F200HT1 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 390UF 200V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 200 V, package / case Axial, Can.
In Stock: 6,321
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 254mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.76 A @ 1 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.875" Dia x 3.625" L (22.22mm x 92.07mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
