Panasonic Electronic Components

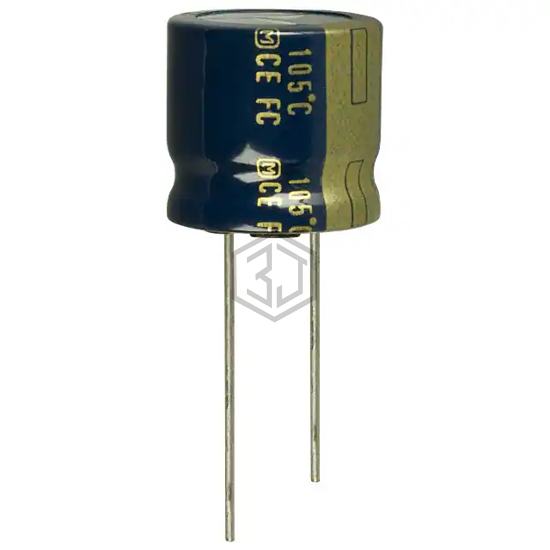

CAP ALUM 390UF 20% 63V RADIAL
EEU-FC1J391S is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 9,356
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.268 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.69 A @ 100 kHz |
| Impedance | 86 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214638391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 63V RADIAL | 90% | View |
| LXZ63VB391M12X25LL | United Chemi-Con | CAP ALUM 390UF 20% 63V RADIAL | 89% | View |
| EEU-FC1E391 | Panasonic Electronic Components | CAP ALUM 390UF 20% 25V RADIAL | 59% | View |
| 601D397D200HT1 | Vishay Sprague | CAP ALUM 390UF 200V AXIAL | 56% | View |
| 601D397F200HT1 | Vishay Sprague | CAP ALUM 390UF 200V AXIAL | 53% | View |
| B41890A4397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 16V RADIAL | 53% | View |
Submit your RFQ for EEU-FC1J391S and get a quote within 24 hours.
