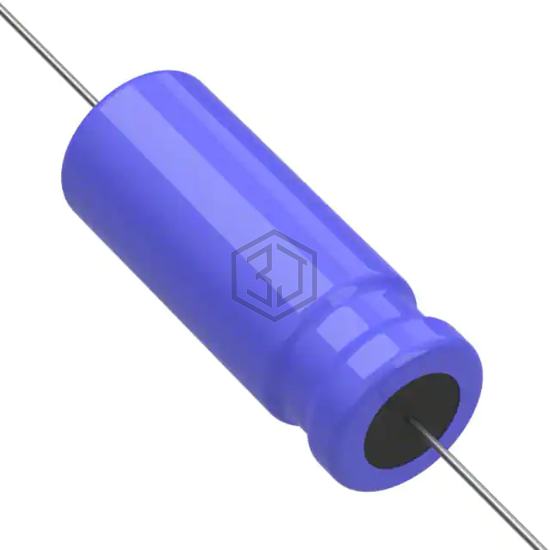

CAP ALUM 120UF 100V AXIAL
601D127F100FJ1 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 120UF 100V AXIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Axial, Can.
In Stock: 6,849
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 869mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 725 mA @ 120 Hz |
| Ripple Current @ High Frequency | 870 mA @ 1 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.625" Dia x 1.625" L (15.88mm x 41.28mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2A121MHD1TO | Nichicon | CAP ALUM 120UF 20% 100V RADIAL | 89% | View |
| UPM1K121MPD | Nichicon | CAP ALUM 120UF 20% 80V RADIAL | 88% | View |
| UPM1J121MHD6 | Nichicon | CAP ALUM 120UF 20% 63V RADIAL | 74% | View |
| B41890A5127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 25V RADIAL | 68% | View |
| 672D127F060DS3J | Vishay Sprague | CAP ALUM 120UF 60V RADIAL | 67% | View |
| 610D127F030DL2 | Vishay Sprague | CAP ALUM 120UF 30V AXIAL | 56% | View |
Submit your RFQ for 601D127F100FJ1 and get a quote within 24 hours.
