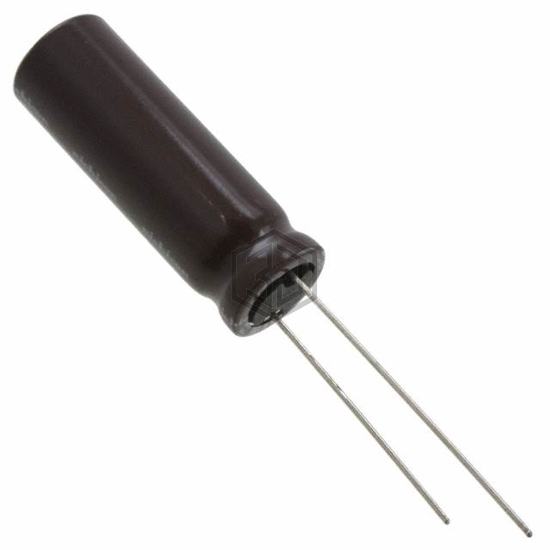

CAP ALUM 120UF 20% 80V RADIAL
UPM1K121MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 114
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 585 mA @ 120 Hz |
| Ripple Current @ High Frequency | 870 mA @ 10 kHz |
| Impedance | 180 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1K121MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ1K121MPD | Nichicon | CAP ALUM 120UF 20% 80V RADIAL | 90% | View |
| 601D127F100FJ1 | Vishay Sprague | CAP ALUM 120UF 100V AXIAL | 88% | View |
| 672D127H100ET5J | Vishay Sprague | CAP ALUM 120UF 100V RADIAL | 86% | View |
| 672D127F060DS3J | Vishay Sprague | CAP ALUM 120UF 60V RADIAL | 82% | View |
| B41890A5127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 25V RADIAL | 68% | View |
| 610D127F030DL2 | Vishay Sprague | CAP ALUM 120UF 30V AXIAL | 56% | View |
Submit your RFQ for UPM1K121MPD and get a quote within 24 hours.
