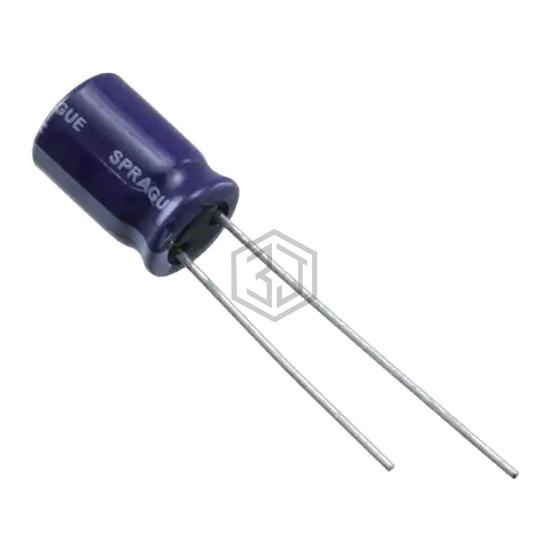

CAP ALUM 22UF 20% 100V RADIAL
515D226M100BB8PE3 is a Aluminum Electrolytic Capacitors manufactured by Vishay Sprague. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 3,682
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 260 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URS2A220MPD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 100% | View |
| SEK220M160ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 160V RADIAL | 80% | View |
| 200YXF22MEFCT810X20 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 70% | View |
| B43866C2226M | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 250V RADIAL | 70% | View |
| 500D226M025BA5T | Vishay Sprague | CAP ALUM 22UF 20% 25V AXIAL | 56% | View |
| ESH226M016AC3DA | KEMET | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for 515D226M100BB8PE3 and get a quote within 24 hours.
