Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 160V RADIAL

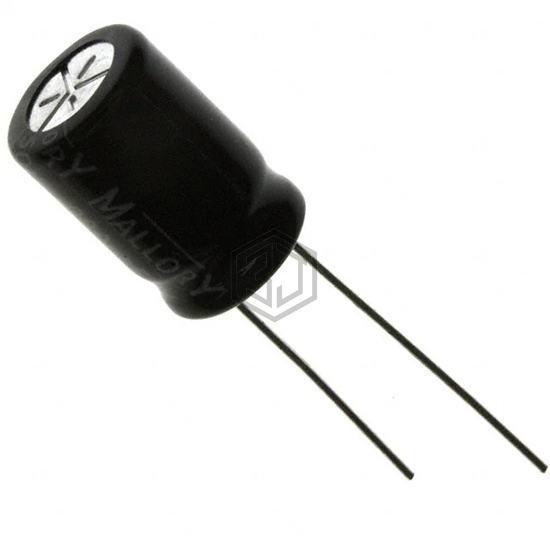

SEK220M160ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 1,406
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 9.05Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 208 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 517D226M160CG6AE3 | Vishay Sprague | CAP ALUM 22UF 20% 160V RADIAL | 100% | View |
| 672D226H150DT5C | Vishay Sprague | CAP ALUM 22UF 150V RADIAL | 96% | View |
| 200YXF22MEFCT810X20 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 79% | View |
| B43866C2226M | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 250V RADIAL | 76% | View |
| ESH226M016AC3DA | KEMET | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
| MAL211828229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V AXIAL | 54% | View |
Submit your RFQ for SEK220M160ST and get a quote within 24 hours.
