MOSFET N&P-CH COMMON DRAIN

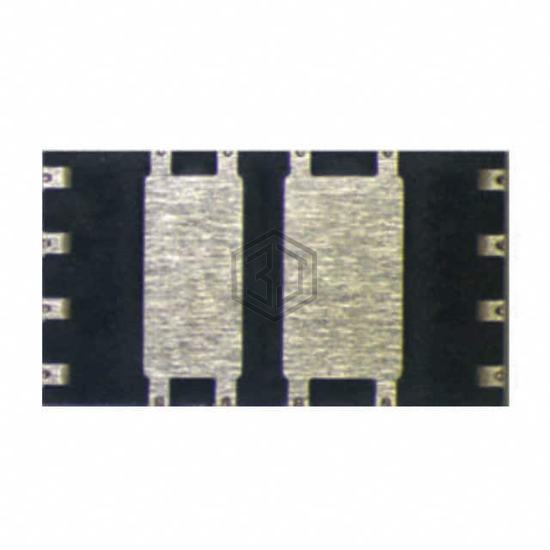

SQUN702E-T1_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET N&P-CH COMMON DRAIN. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case Die, power - max 48W (Tc), 60W (Tc).
In Stock: 1,638
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel, Common Drain |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V, 200V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc), 20A (Tc) |
| Rds On (Max) @ Id, Vgs | 9.2mOhm @ 9.8A, 10V, 60mOhm @ 5A, 10V, 30mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA, 3.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 23nC @ 20V, 14nC @ 20V, 30.2nC @ 100V |
| Input Capacitance (Ciss) (Max) @ Vds | 1474pF @ 20V, 1450pF @ 20V, 1302pF @ 100V |
| Power - Max | 48W (Tc), 60W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | Die |
| Supplier Device Package | Die |
Submit your RFQ for SQUN702E-T1_GE3 and get a quote within 24 hours.
