DUAL N-CHANNEL 40-V (D-S) 175C M

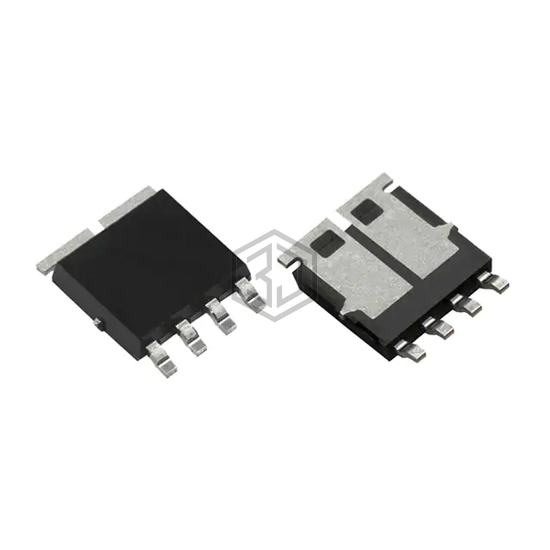

SQJB40EP-T1_BE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. DUAL N-CHANNEL 40-V (D-S) 175C M. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8, power - max 34W (Tc).
In Stock: 9,425
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 35nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1900pF @ 25V |
| Power - Max | 34W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK® SO-8 |
| Supplier Device Package | PowerPAK® SO-8 |
Submit your RFQ for SQJB40EP-T1_BE3 and get a quote within 24 hours.
