N- AND P-CHANNEL 60-V (D-S) 175C

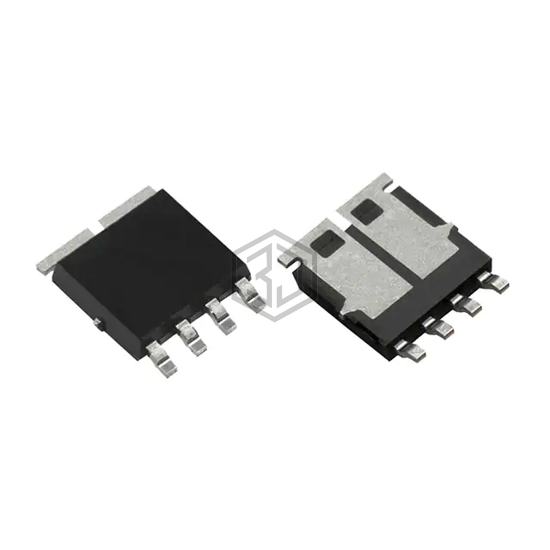

SQJ560EP-T1_BE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. N- AND P-CHANNEL 60-V (D-S) 175C. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 34W (Tc).
In Stock: 6,835
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc), 18A (Tc) |
| Rds On (Max) @ Id, Vgs | 12mOhm @ 10A, 10V, 52.6mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V, 45nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1650pF @ 25V |
| Power - Max | 34W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK® SO-8 Dual |
| Supplier Device Package | PowerPAK® SO-8 Dual |
Submit your RFQ for SQJ560EP-T1_BE3 and get a quote within 24 hours.
