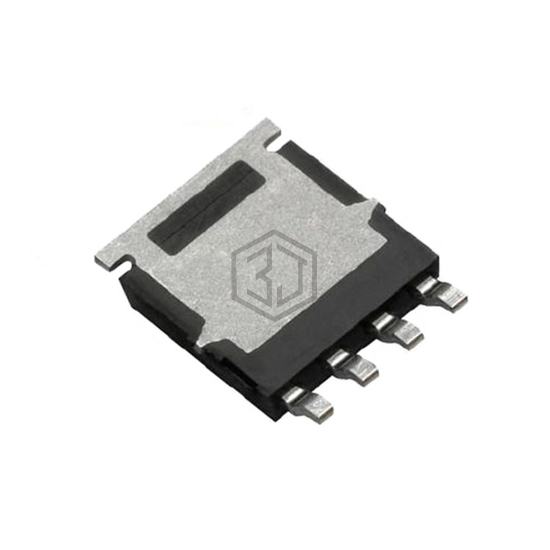

MOSFET N/P CHAN 40V SO8L DUAL
SQJ500AEP-T1_BE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET N/P CHAN 40V SO8L DUAL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8, power - max 48W (Tc).
In Stock: 4,446
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Rds On (Max) @ Id, Vgs | 9.2mOhm @ 9.8A, 10V, 27mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA, 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 38.3nC @ 10V, 45nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1843pF @ 20V, 1628pF @ 20V |
| Power - Max | 48W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK® SO-8 |
| Supplier Device Package | PowerPAK® SO-8 |
Submit your RFQ for SQJ500AEP-T1_BE3 and get a quote within 24 hours.
