MOSFET DUAL N-CH AUTO 40V PP SO-

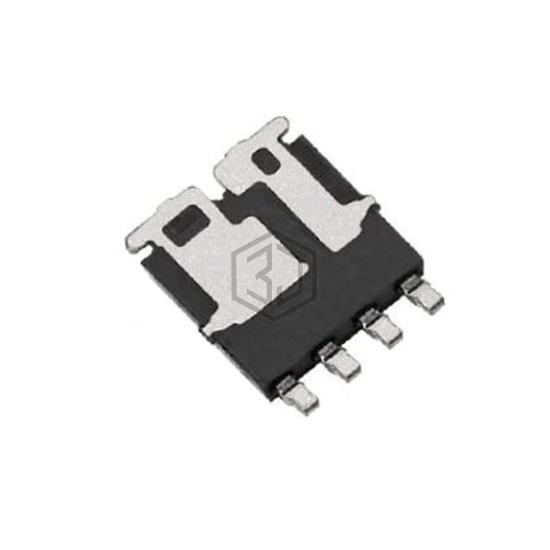

SQJ208EP-T1_GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CH AUTO 40V PP SO-. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case PowerPAK® SO-8 Dual, power - max 27W (Tc), 48W (Tc).
In Stock: 5,584
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc), 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 9.4mOhm @ 6A, 10V, 3.9mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 250µA, 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 33nC @ 10V, 75nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1700pF @ 25V, 3900pF @ 25V |
| Power - Max | 27W (Tc), 48W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | PowerPAK® SO-8 Dual |
| Supplier Device Package | PowerPAK® SO-8 Dual Asymmetric |
Submit your RFQ for SQJ208EP-T1_GE3 and get a quote within 24 hours.
