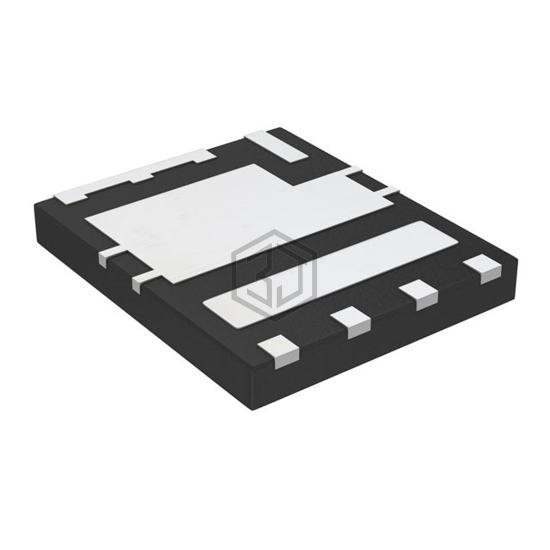

MOSFET DL N-CH 30V POWERPAIR 6X5
SIZF920DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DL N-CH 30V POWERPAIR 6X5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 3.9W (Ta), 28W (Tc), 4.5W (Ta), 74W (Tc).
In Stock: 2,398
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual), Schottky |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Ta), 76A (Tc), 49A (Ta), 197A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.07mOhm @ 10A, 10V, 1.05mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA, 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 29nC @ 10V, 125nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1300pF @ 15V, 5230pF @ 15V |
| Power - Max | 3.9W (Ta), 28W (Tc), 4.5W (Ta), 74W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® (6x5) |
Submit your RFQ for SIZF920DT-T1-GE3 and get a quote within 24 hours.
