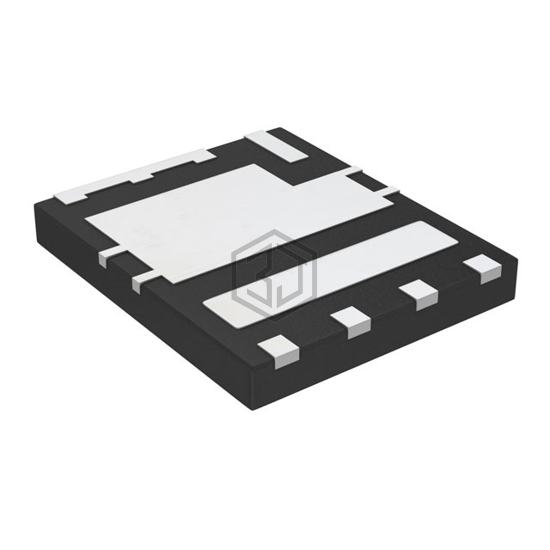

MOSFET 2 N-CH 30V 60A POWERPAIR
SIZF906DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2 N-CH 30V 60A POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TA), package / case 8-PowerWDFN, power - max 38W (Tc), 83W (Tc).
In Stock: 6,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 15A, 10V, 1.17mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22nC @ 4.5V, 92nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 2000pF @ 15V, 8200pF @ 15V |
| Power - Max | 38W (Tc), 83W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® (6x5) |
Submit your RFQ for SIZF906DT-T1-GE3 and get a quote within 24 hours.
