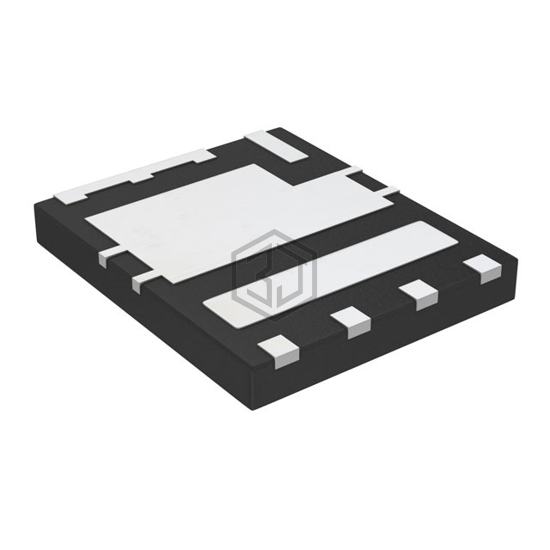

MOSFET DUAL N-CHAN 30V PPAIR 3X3
SIZF300DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CHAN 30V PPAIR 3X3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 3.8W (Ta), 48W (Tc), 4.3W (Ta), 74W (Tc).
In Stock: 2,875
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 23A (Ta), 75A (Tc), 34A (Ta), 141A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 10A, 10V, 1.84mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22nC @ 10V, 62nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1100pF @ 15V, 3150pF @ 15V |
| Power - Max | 3.8W (Ta), 48W (Tc), 4.3W (Ta), 74W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® (6x5) |
Submit your RFQ for SIZF300DT-T1-GE3 and get a quote within 24 hours.
