MOSFET 2 N-CH 30V 8-POWERPAIR

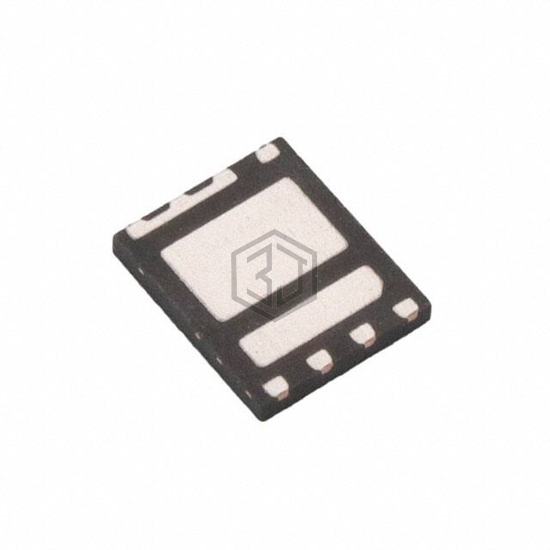

SIZ988DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2 N-CH 30V 8-POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 20.2W, 40W.
In Stock: 4,948
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc), 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 7.5mOhm @ 10A, 10V, 4.1mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA, 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10.5nC @ 4.5V, 23.1nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1000pF @ 15V, 2425pF @ 15V |
| Power - Max | 20.2W, 40W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® |
Submit your RFQ for SIZ988DT-T1-GE3 and get a quote within 24 hours.
