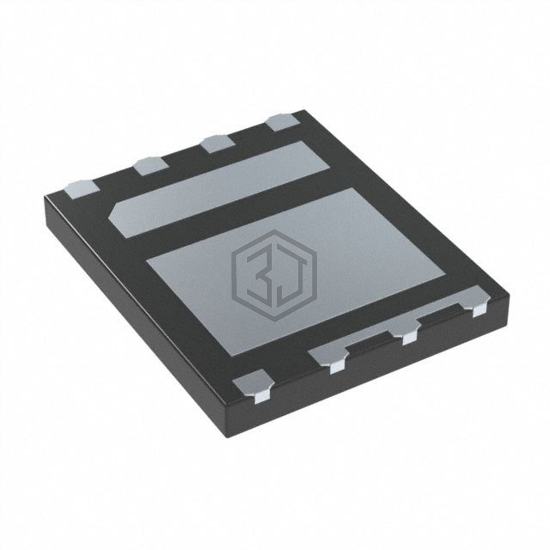

MOSFET 2 N-CH 30V 8-POWERPAIR
SIZ980DT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET 2 N-CH 30V 8-POWERPAIR. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 20W, 66W.
In Stock: 1,299
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual), Schottky |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc), 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 6.7mOhm @ 15A, 10V, 1.6mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.1nC @ 4.5V, 35nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 930pF @ 15V, 4600pF @ 15V |
| Power - Max | 20W, 66W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® (6x5) |
Submit your RFQ for SIZ980DT-T1-GE3 and get a quote within 24 hours.
