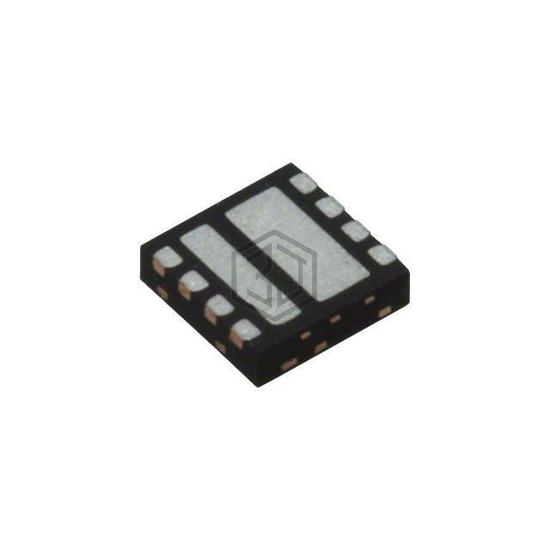

MOSFET DUAL N-CH 30V PPAIR 6 X 5
SIZ980BDT-T1-GE3 is a Transistors - FETs, MOSFETs - Arrays manufactured by Vishay Siliconix. MOSFET DUAL N-CH 30V PPAIR 6 X 5. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN, power - max 3.8W (Ta), 20W (Tc), 5W (Ta), 66W (Tc).
In Stock: 11,900
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual), Schottky |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 23.7A (Ta), 54.8A (Tc), 54.3A (Ta), 197A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.39mOhm @ 15A, 10V, 1.06mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 10V, 79nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 790pF @ 15V, 3655pF @ 15V |
| Power - Max | 3.8W (Ta), 20W (Tc), 5W (Ta), 66W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerWDFN |
| Supplier Device Package | 8-PowerPair® (6x5) |
Submit your RFQ for SIZ980BDT-T1-GE3 and get a quote within 24 hours.
